Proof that the central angle of the circle is equal to twice the corresponding inscribed angle

Hello everyone. Today we will prove that the central angle of a circle is equal to twice the corresponding inscribed angle of the circle. We will use the method of direct proof as a proof method.

Theorem: The central angle of a circle is equal to twice the corresponding inscribed angle of the circle.

Proof:

We can reformulate the statement as follows:

Let \(P, Q, R \) be three arbitrary points on the circumference of a circle \(k (O, r) \). Then, \(\angle QOP = 2 \angle QRP \).

We will construct the proof by proving three separate possible cases:

First case: The center of the circle is on a side of the inscribed angle.

We can write the following equations : \[\angle POR + \angle ORP + \angle RPO = 180 ^ {\circ} \] \[\angle QOP = 180 ^{\circ} - \angle POR \] \[\angle ORP = \angle QRP \] Combining the first and second equation we get: \[\angle QOP = \angle ORP + \angle RPO \] Since triangle \(\triangle POR \) is isosceles we have that \(\angle RPO = \angle ORP \), so: \[\angle QOP = \angle ORP + \angle ORP \] \[\angle QOP = 2 \angle ORP \] That is, since \(\angle ORP = \angle QRP \) we get: \[ \angle QOP = 2 \angle QRP \]

Second case: The center of the circle is in the inner area of ​​the inscribed angle.

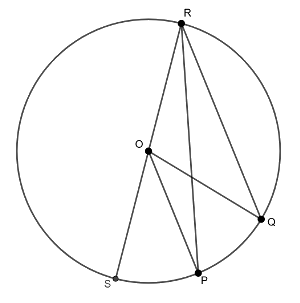

Consider the following diagram:


Since the points \(S, O, R \) lie on the same line, based on the results from the first case, we conclude that \(\angle SOP = 2 \angle SRP \) and \(\angle QOS = 2 \angle QRS \) . Since \(\angle QOP = \angle SOP + \angle QOS \) we have that: \[\angle QOP = 2 \angle SRP + 2 \angle QRS \] \[\angle QOP = 2 (\angle SRP + \angle QRS) \] \[\angle QOP = 2 \angle QRP \]

Third case: The center of the circle is outside the inner area of ​​the inscribed angle.

Consider the following diagram:


Since the points \(S, O, R \) lie on the same line, based on the results from the first case, we conclude that \(\angle POS = 2 \angle PRS \) and \(\angle QOS = 2 \angle QRS \) . Since \(\angle QOP = \angle QOS- \angle POS \) we have that: \[\angle QOP = 2 \angle QRS-2 \angle PRS \] \[\angle QOP = 2 ( \angle QRS- \angle PRS) \] \[\angle QOP = 2 \angle QRP \]

\(\blacksquare\)
